Digga Trencher Bigfoot Standard
Digga Trencher Bigfoot Standard
Digga Bigfoot Trencher 900mm Dig w 200mm Combo Chain - Image 3
Digga Bigfoot Trencher 900mm Dig w 200mm Combo Chain - Image 4
Super-fast and super-secure checkout from payfast

Digga Bigfoot Trencher 900mm Dig w 200mm Combo Chain

Price exclusive of VAT

Ideal for excavators up to 4.5 tonne, skid steer loaders, tractors, and mini machines, the Bigfoot Trencher can be used for pipe laying for irrigation, underground power & communications, road repairs, and general construction.

SKU: BFT-000021
Category: Bigfoot Trencher, Trenchers
Tags: bigfoot, chain, trencher

Trenchers for machines 1.5 to 4.5T.

Ideal for excavators up to 4.5 tonne, skid steer loaders, tractors, and mini machines, the Bigfoot Trencher can be used for pipe laying for irrigation, underground power & communications, road repairs, and general construction.

A compact yet powerful trencher fitted with a quality Digga Planetary Drive & Eaton Hydraulic Motor, 3 position-adjustable skid foot and single spoil removal auger. Unique design gives the operator consistent digging depth, efficient spoil removal and finely crumbled spoil for adequate compaction back into the trench whilst providing minimal ground disturbance to surrounding conditions and a cleaner job finish.

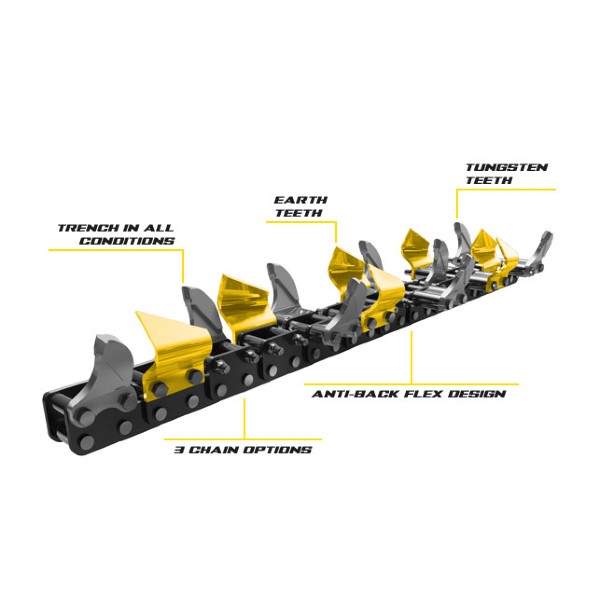

Chains are available for all ground conditions.

  • Earth – Best used on soft ground like earth and clay.
  • Combination – Best used in dry, hard or medium ground conditions.
  • Tungsten – Best used in hard or frozen ground conditions and asphalt.

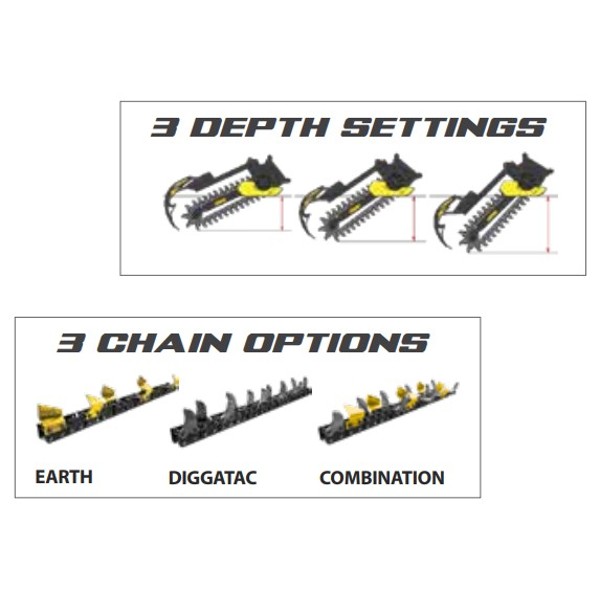

  • Adjustable depth skid foot – Precision depth control ensures the spoil auger has optimum ground clearance. Take advantage of every bit of valuable horsepower when trenching. Preset depths: 600 / 750 / 900mm.
  • Heavy duty crumbing system – Start trenching with the crumber in-ground. A super heavy duty spring ensures the crumber stays engaged with the bottom of the trench for maximum spoil removal from start to finish.
  • Skid foot can be seen from the cab – The new design foot can be clearly seen from the cab and allows the operator to see when the trencher is in the correct trenching position. No need for a spotter.
  • A cleaner work-side of the trench – Digga’s new foot design also feeds overburden back onto the chain, transferring it to the spoil auger for a cleaner clearer work side of the trench.
  • Anti-back flex chain design – You can be guaranteed of quality and superior performance with our Anti-back Flex design. It prevents the chain links from flexing back in tough soil conditions.
  • Trench in all ground conditions – Available in a number of different tooth configurations for trenching in soft ground, mixed grounds and even permafrost so you can get the job done no matter what environment you are in.
  • Cutting depth – Up to 900mm
  • Cutting Width – 200mm
  • Foot depth presets – 600/750/900
  • Recommended Flow (lpm) – 50-95
  • Motor Type – 2K Bell EATON
  • Max Pressure (Do Not Exceed) – 240 Bar @ 60lpm
  • Max Flow (Do Nort Exceed) – 95 lpm @ 200 bar
  • Max Continuous Power – 25 Kw (34 hp)
  • Length – 1920mm
  • Horizontal Height – 668mm
  • Width – 1212mm
  • Weight (150mm Combo Chain) – 261kg
